Good Quality 5 L 10L 15L 18.9L 20L Plastic PET Bottle Blowing Machines 5 Gallon Bottle Making Machine Semi Automatic

Enhance your water bottle production with our advanced semi-automatic PET 5-gallon bottle blowing machine. Designed for high-efficiency blow molding, this machine ensures consistent, durable, and high-quality PET bottles for drinking water, beverages, and industrial liquids.

Key Features:

✔ Semi-automatic operation – Easy control & reduced labor costs

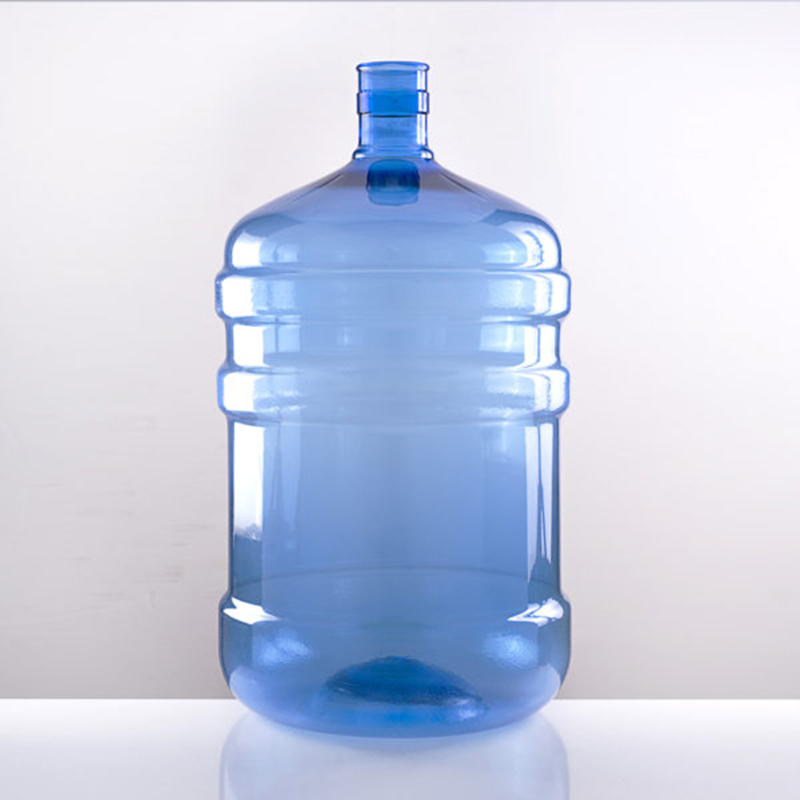

✔ 5-gallon (18.9L) PET bottle production – Perfect for large water containers
✔ Energy-efficient – Low power consumption, high output
✔ Durable mold design – Long-lasting performance with minimal maintenance
✔ Precision blowing technology – Uniform thickness & strong bottle structure

Keywords:

Fully automatic PET bottle blowing machine Cosmetic packaging production line Personal care bottle blowing machine Blowing Machine 5L oil bottle blow molding machine

Product Details
Machine Ordering Process

Applications:

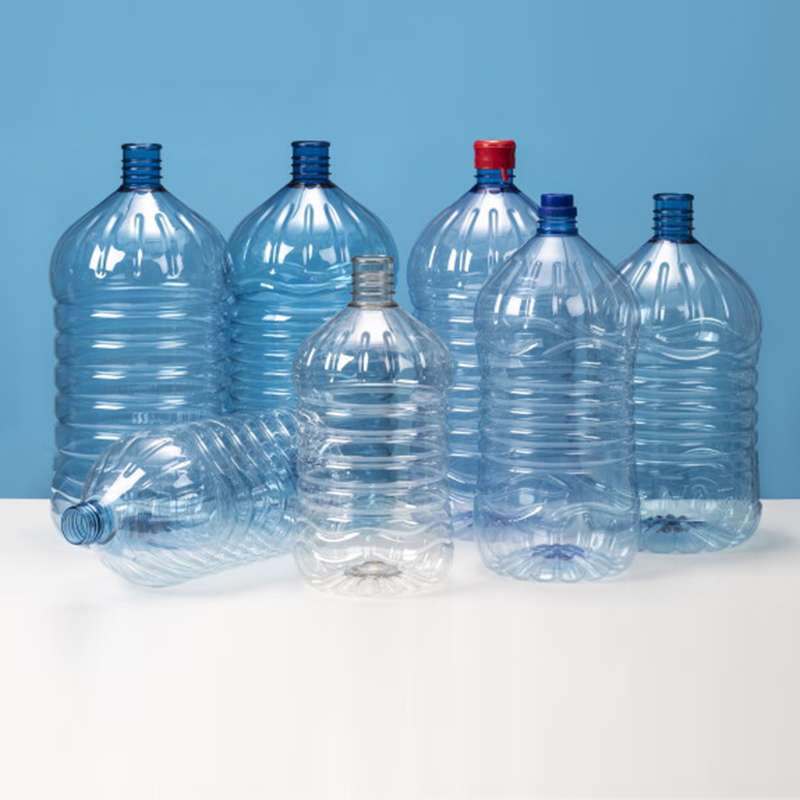

✅ Drinking water bottles
✅ Beverage containers
✅ Industrial liquid packaging

Why Choose Our PET Blow Molding Machine?

Our semi-automatic bottle blowing machine is engineered for reliability, speed, and cost-effectiveness, making it ideal for small to medium-sized bottling plants. With quick mold changeovers and user-friendly controls, it maximizes productivity while ensuring high-quality PET bottle manufacturing.

Model	QA-20L-1
	Cavity	1
	Max.volume	20L
	Bottle mouth maximum overall diameter	200
	Bottle biggest diameter	400
	Bottle maximum height	600
	Theory output	80
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	15-40
	Oven Size (LxWxH)	2.370.681.65
	Oven weight (KG)	380
Blow molding part	Die force (KN)	150
	Die stroke (mm)	340
	Max. mould size(mm)	420*500
	Mould thickness	Adjustable
	Mould spacing(mm)	Adjustable
	Max. pulling stroke(mm)	500
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption(1tr/min)	560
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	650
	Machine size(LxWxH)(m)	2.180.771.96
	Machine weight(KG)	1000

Four core advantages to help efficient production

As a professional bottle blowing machine manufacturer, we are committed to providing customers with high-performance, high-stability, and cost-effective bottle blowing equipment.

High efficiency and stability, excellent production capacity

Using servo drive + closed-loop control technology, the production speed is as high as 2500-5000 bottles/hour, the positioning accuracy is ±0.1mm, ensuring the uniformity of the bottle body and the yield rate exceeds 99%.

Energy saving and environmental protection, reducing operation

The optimized energy management system saves 30% energy compared to traditional models. Combined with closed-loop cooling technology, it reduces the waste of raw materials and electricity, saving customers long-term production costs.

Stable and durable, low failure rate

The core components are imported brands (such as Siemens, ABB, etc.), the key structures are reinforced, and the mean time between failures (MTBF) exceeds 1 million hours.

Full-process service

We provide one-stop support including pre-sales consultation, customized solutions, installation training and lifelong maintenance, with 24-hour response time to ensure customers can produce without worries.

Features

We provide efficient, stable and sustainable bottle blowing solutions! If you need customized requirements, please feel free to consult us!

01.

Intelligent servo drive system

The machine utilizes full servo motor drive technology, combined with proprietary motion control, to achieve precise mold opening, closing, and stretching, reducing energy consumption by 35% while ensuring a repeatable positioning accuracy of ±0.05mm.

02.

Highly efficient and energy-saving heating solutions

Equipped with an infrared bidirectional radiation heating system and an intelligent temperature control module, it can achieve precise temperature control within ±1°C. The unique heating chamber partition design reduces energy consumption by 30% compared to traditional models and improves heating efficiency by 25%.

03.

Intelligent process control systems

Equipped with an industrial-grade PLC and a 10.1-inch touch screen, it integrates functions such as production data collection, fault diagnosis, and remote monitoring. The system can store 100 sets of process parameters and supports one-click access, enabling intelligent production management.

04.

Reliable mechanical structure

The machine is constructed with a high-strength alloy steel frame, and key moving parts are precision machined and hardened. Equipped with imported linear guides and precision bearings, it ensures stability and durability at high speeds.

Frequently Asked Questions

We have listed as many common questions as possible that our customers frequently ask.

1. What is the production capacity of your PET blow molding machine?

Answer: It depends on the model (single or multi-cavity). Standard machines produce 1,000–5,000 bottles/hour, while high-speed models can reach 10,000+ bottles/hour. We customize solutions based on yo...

2. Can your machine use recycled PET (rPET) material?

Answer: Yes! Our machines support virgin PET and rPET (up to 30–50% recycled content, depending on bottle quality requirements). We optimize heating and blowing for stable performance.

3. How long does it take to change molds for different bottle shapes?

Answer: With our quick mold-change system, switching takes 15–30 minutes (vs. 1–2 hours for traditional machines), minimizing downtime.

4. What’s the energy consumption of your machine?

Answer: Advanced servo-driven machines save 20–30% energy vs. hydraulic models. For example, a 20-cavity machine consumes ~25–35 kW/h.

5. How do you ensure consistent bottle quality?

Answer: Our machines feature:Precision temperature control (±1°C)Automatic wall thickness adjustmentReal-time defect detection (rejects faulty bottles)

6. What maintenance is required?

Answer: Regular maintenance includes:Daily: Lubrication, air pressure checksMonthly: Mold cleaning, heater inspectionYearly: Servo motor and hydraulic system overhaul

7. Can you provide a complete production line (not just the blow molder)?

Answer: Yes! We offer turnkey solutions, including:Preform injection machinesBlow moldersConveyors, labelers, fillersQuality inspection systems

8. What’s your after-sales service policy?

Answer: We provide:1–2 years warranty (core parts)24/7 remote supportOn-site technician dispatch (if needed)

Ordering Process for Our Blow Molding Machines：

Step	Stage	Description	Key Activities & Deliverables
1	Initial Inquiry & Consultation	You contact us to express your needs.	• Submit your requirements (bottle design, output capacity, material). • Our technical team provides initial consultation and machine recommendations.
2	Technical & Commercial Proposal	We provide a detailed offer based on your needs.	• Receive a formal quotation including machine specifications, price, and delivery terms. • Layout drawing and performance data provided for review.
3	Proposal Review & Negotiation	We discuss and refine the offer to meet your expectations.	• Clarify technical details and commercial terms (payment, warranty, training). • Adjust the proposal as needed.
4	Order Confirmation & Contract Signing	The agreement is formalized.	• Sign a sales contract or acknowledge a Proforma Invoice (PI). • Provide an official purchase order (PO) from your company.
5	Payment (Advance)	You make the initial payment to secure production.	• Pay the first installment (e.g., 30%-50% of the total amount) as per the contract.
6	Machine Production & Testing	We manufacture and rigorously test your machine.	• We build the machine to your specifications. • A factory acceptance test (FAT) is conducted. You are welcome to witness it.
7	Final Payment & Shipping Preparation	You clear the balance payment before shipment.	• Settle the remaining balance upon successful FAT and before dispatch. • We prepare all shipping and customs documentation.
8	Packaging & Shipment	Your machine is securely packed and shipped.	• The machine is crated for safe international or domestic transport. • We arrange shipment and provide tracking details.
9	Installation & Commissioning	Our engineers assist with setup at your factory.	• Our technicians arrive at your site (if included in the contract). • The machine is installed, calibrated, and tested with your materials.
10	Training & Final Acceptance	Your operators are trained on the machine.	• Comprehensive hands-on training is provided. • Perform Site Acceptance Test (SAT) and sign the final acceptance certificate.
11	After-Sales Support	Our ongoing support begins.	• Warranty period activation. • Lifetime technical support and supply of spare parts.

If you would like to know more about our products, please contact us. I would be happy to help you!
