Semi-automatic 1.5L 2-cavity automatic bottle stripping and blowing machine

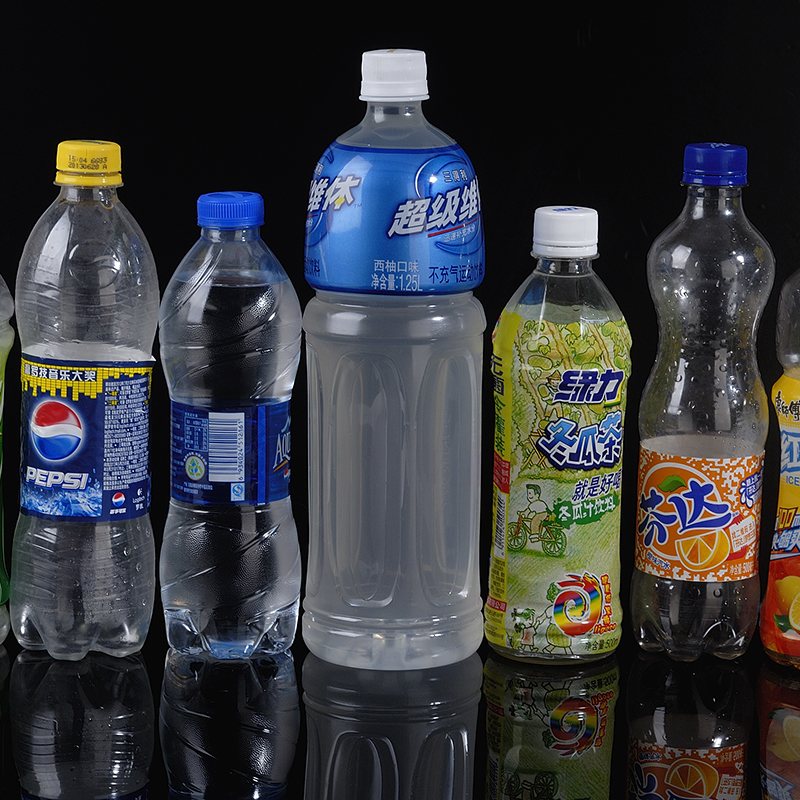

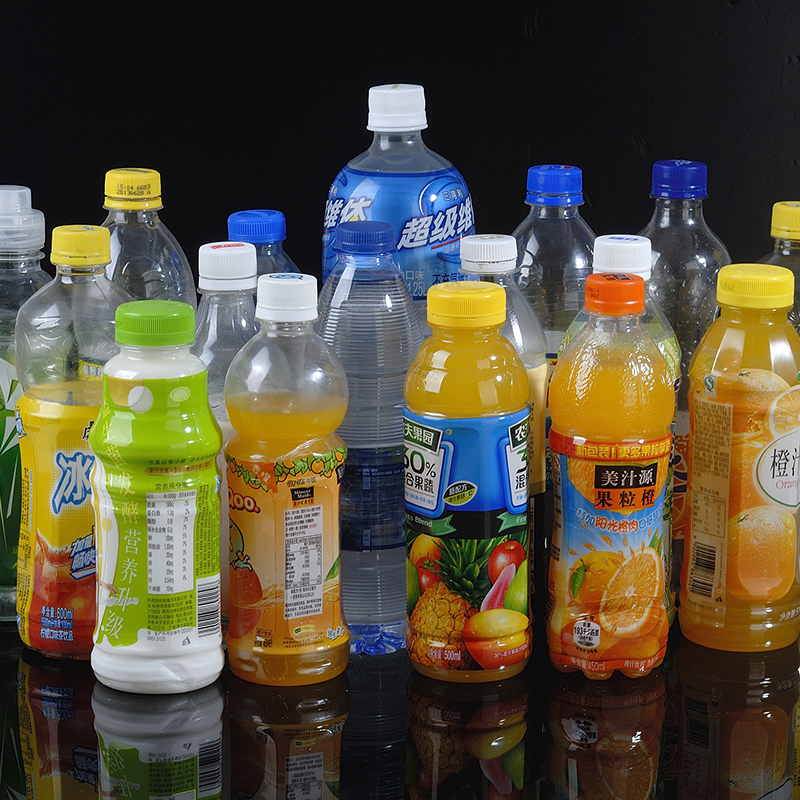

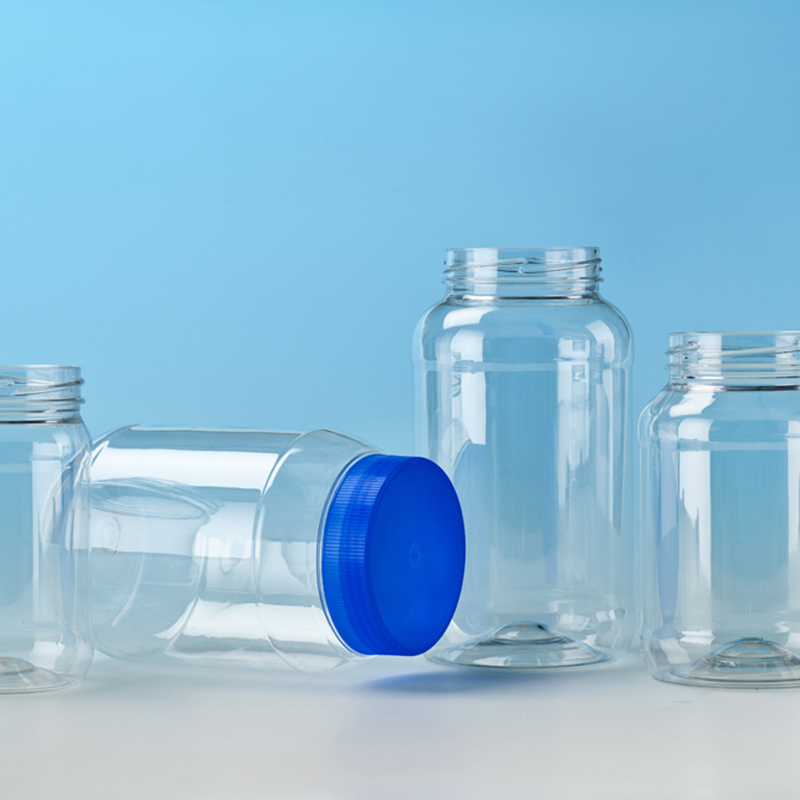

PINSHENG Machine Semi automatic PET stretch blowing machine is suitable for producing PET plastic containers and bottles from 0.1L to 20L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.

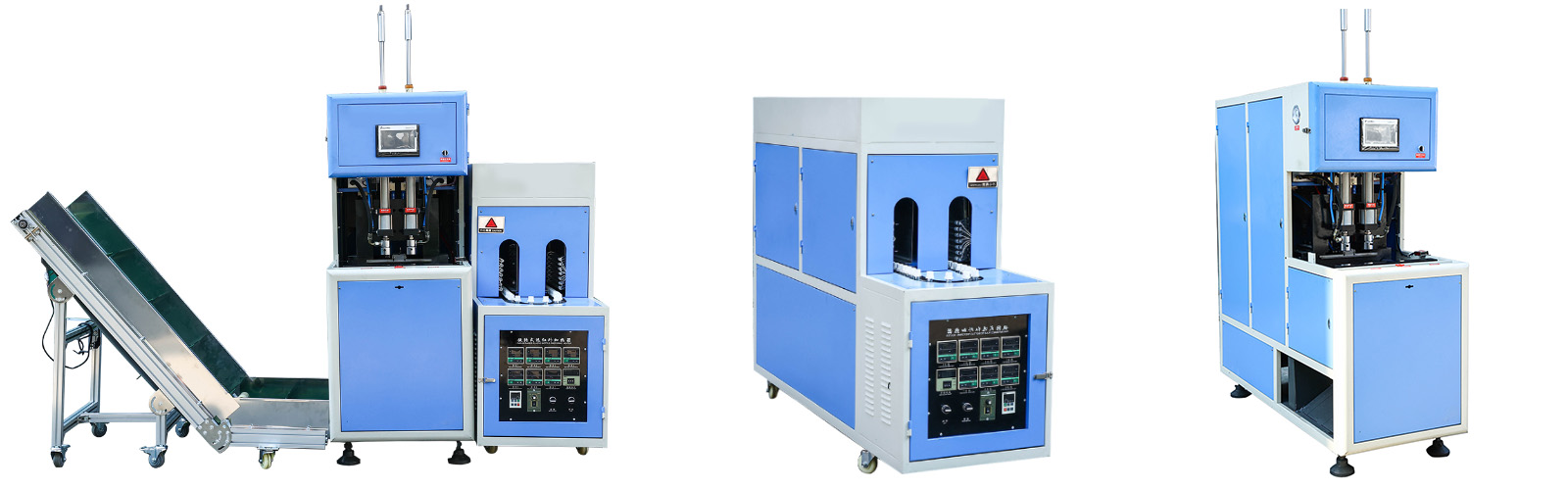

The machine consists of main unit and rotary infrared heater. The ordinary quartz lamp cannot heat preform ideally because the preform wall is excessively thick. The infrared heater with high penetrative force can heat the inside and outside of preform simultaneously and keep preform in even heating, therefore high shaping quality.
What an operator should do during production is just to put heated preform into the blow mold and press the switch, and then computer will take care of the whole procedure.
Model |
QA-1.5L |
Yield (based on bottle type) |
1000PCS/H |
Bottle volume |
0.2-1.5L |
Bottle diameter |
20mm-100mm |
Bottle body height |
50mm-450mm |
Bottle mouth diameter |
15mm-100mm |

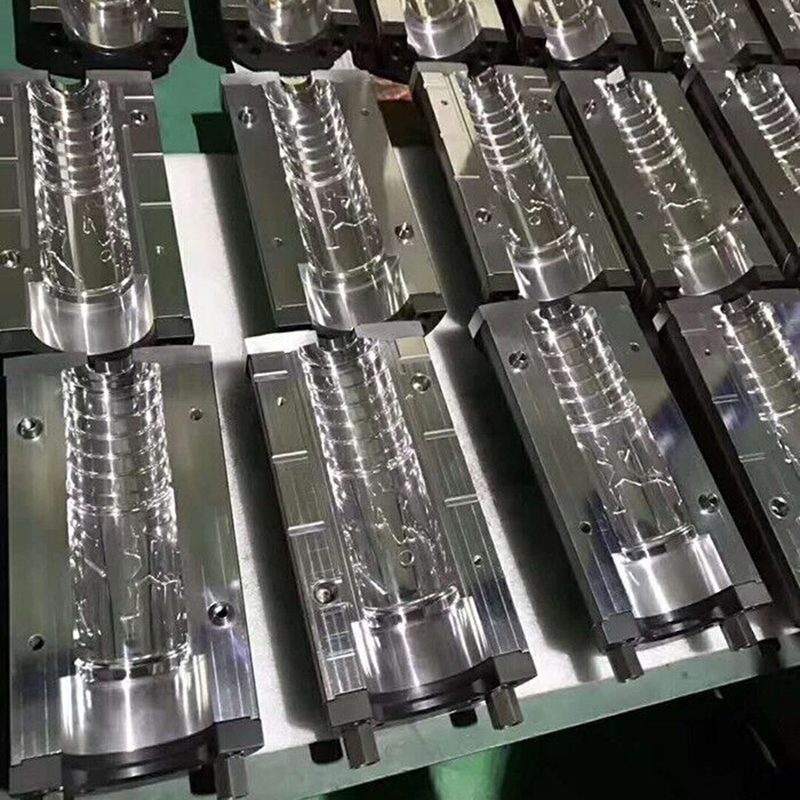

Mold cavity |
2 cavities |
Effective area of mold |
480*340mm |
Closing stroke (mold thickness) |
100~250mm |
supply voltage |
380v 3Phase /220v 3Phase 50/60HZ |
Installed capacity power/actual usage power |
14kw/9kw |
High pressure air compressor |
1.2m3/min 3.0MPa |
Cold drying machine |
2.0m3/min 3.0MPa 1set |
Cold water volume |
15L/min |
Host size （length, width, height/weight） |
163*62*159cm/750kg |
Oven size （length, width, height/weight） |
178*57*138cm/450kg |
Four core advantages to help efficient production
High efficiency and stability, excellent production capacity
Energy saving and environmental protection, reducing operation
Stable and durable, low failure rate
Full-process service
Features
01.
Intelligent servo drive system
02.
Highly efficient and energy-saving heating solutions
03.
Intelligent process control systems
04.
Reliable mechanical structure
Frequently Asked Questions
Answer: It depends on the model (single or multi-cavity). Standard machines produce 1,000–5,000 bottles/hour, while high-speed models can reach 10,000+ bottles/hour. We customize solutions based on yo...
Answer: Yes! Our machines support virgin PET and rPET (up to 30–50% recycled content, depending on bottle quality requirements). We optimize heating and blowing for stable performance.
Answer: With our quick mold-change system, switching takes 15–30 minutes (vs. 1–2 hours for traditional machines), minimizing downtime.
Answer: Advanced servo-driven machines save 20–30% energy vs. hydraulic models. For example, a 20-cavity machine consumes ~25–35 kW/h.
Answer: Our machines feature:Precision temperature control (±1°C)Automatic wall thickness adjustmentReal-time defect detection (rejects faulty bottles)
Answer: Regular maintenance includes:Daily: Lubrication, air pressure checksMonthly: Mold cleaning, heater inspectionYearly: Servo motor and hydraulic system overhaul
Answer: Yes! We offer turnkey solutions, including:Preform injection machinesBlow moldersConveyors, labelers, fillersQuality inspection systems
Answer: We provide:1–2 years warranty (core parts)24/7 remote supportOn-site technician dispatch (if needed)
Ordering Process for Our Blow Molding Machines：
| Step | Stage | Description | Key Activities & Deliverables |
|---|---|---|---|
| 1 | Initial Inquiry & Consultation | You contact us to express your needs. | • Submit your requirements (bottle design, output capacity, material). • Our technical team provides initial consultation and machine recommendations. |
| 2 | Technical & Commercial Proposal | We provide a detailed offer based on your needs. | • Receive a formal quotation including machine specifications, price, and delivery terms. • Layout drawing and performance data provided for review. |
| 3 | Proposal Review & Negotiation | We discuss and refine the offer to meet your expectations. | • Clarify technical details and commercial terms (payment, warranty, training). • Adjust the proposal as needed. |
| 4 | Order Confirmation & Contract Signing | The agreement is formalized. | • Sign a sales contract or acknowledge a Proforma Invoice (PI). • Provide an official purchase order (PO) from your company. |
| 5 | Payment (Advance) | You make the initial payment to secure production. | • Pay the first installment (e.g., 30%-50% of the total amount) as per the contract. |
| 6 | Machine Production & Testing | We manufacture and rigorously test your machine. | • We build the machine to your specifications. • A factory acceptance test (FAT) is conducted. You are welcome to witness it. |
| 7 | Final Payment & Shipping Preparation | You clear the balance payment before shipment. | • Settle the remaining balance upon successful FAT and before dispatch. • We prepare all shipping and customs documentation. |
| 8 | Packaging & Shipment | Your machine is securely packed and shipped. | • The machine is crated for safe international or domestic transport. • We arrange shipment and provide tracking details. |
| 9 | Installation & Commissioning | Our engineers assist with setup at your factory. | • Our technicians arrive at your site (if included in the contract). • The machine is installed, calibrated, and tested with your materials. |
| 10 | Training & Final Acceptance | Your operators are trained on the machine. | • Comprehensive hands-on training is provided. • Perform Site Acceptance Test (SAT) and sign the final acceptance certificate. |
| 11 | After-Sales Support | Our ongoing support begins. | • Warranty period activation. • Lifetime technical support and supply of spare parts. |
