Single Cavity Plastic Making Blower 5L Pet Bottle Semi Automatic Pet Bottle Blowing Machine
Semi automatic 5L liter pet water bottle bottol makeing making blowing machine
The 5L 1-Cavity Semi-Automatic Blow Molding Machine is a reliable and economical solution for manufacturing high-quality 5-liter plastic bottles in small to medium-scale production. Designed for PET, HDPE, and PP materials, this machine offers user-friendly operation, energy efficiency, and consistent performance, making it ideal for beverage, chemical, oil, and liquid packaging industries.

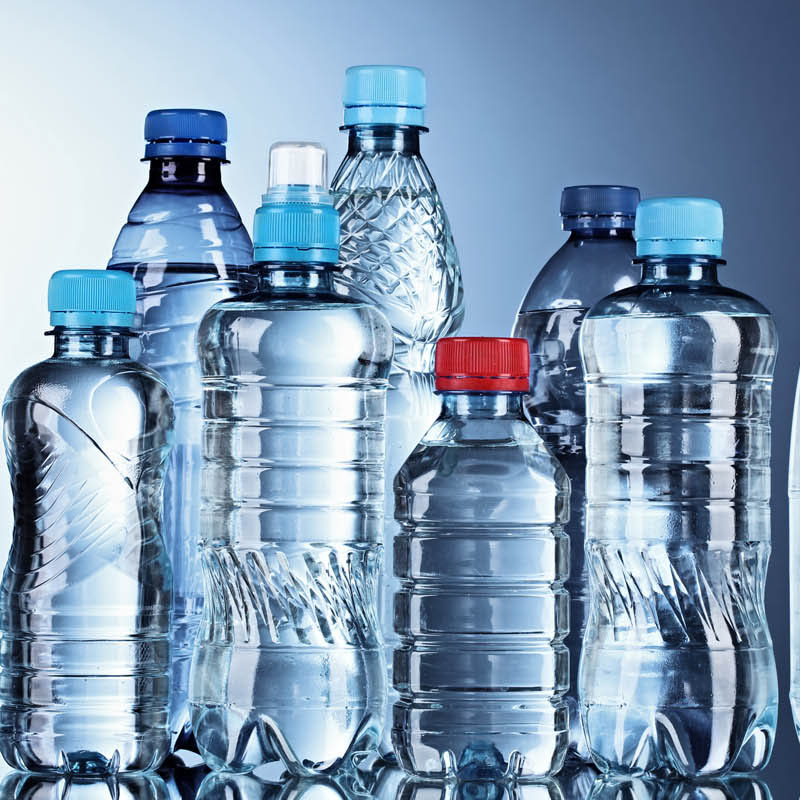

QA series Plastic making Top quality useful semi automatic pet blowing machinery is controlled by microcomputer. The plastic blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately.With infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.QA series semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
Key Features & Benefits
✔ Single-Cavity Design – Produces one 5L bottle per cycle, perfect for startups and small businesses.
✔ Semi-Automatic Operation – Manual parison (preform) loading with automated blowing, cooling, and ejection for optimal efficiency.
✔ Energy-Saving Technology – Reduces power consumption with optimized heating and air pressure systems.
✔ Adjustable Parameters – Customize blowing time, temperature, and pressure for different bottle designs.
✔ Durable Construction – Heavy-duty steel frame ensures long-lasting performance with minimal maintenance.
✔ Quick Mold Change – Switch between different bottle shapes and sizes with ease.
✔ Safety Compliance – Includes overheat protection, emergency stop, and safety door interlocks.
Technical Specifications
Bottle Capacity: Up to 5 liters (5000ml)
Mold Cavities: 1 (single-cavity)
Production Output: 100–250 bottles/hour (depending on cycle time)
Air Pressure Requirement: 0.6–0.8 MPa
Heating Power: 3–5 kW (adjustable)
Cooling Method: Air or water cooling (model-dependent)
Control System: Manual or basic PLC control (optional)
Machine Dimensions: Compact design for small factory spaces
Model
|
QA-5L-1
|
|||
Cavity |
1 |
|||
Max.volume |
5L |
|||
Bottle mouth maximum overall diameter |
150 |
|||
Bottle biggest diameter |
200 |
|||
Bottle maximum height |
400 |
|||
Theory output |
350 |
|||
Oven
|
Temperature grade(rate) |
8 |
||
Heating time(S) |
90-200 |
|||
Voltage(V) |
220 or as your request |
|||
Frequency(HZ) |
50/60 |
|||
Total power(KW) |
16 |
|||
Oven Size (LxWxH) |
1.45*0.65*1.15 |
|||
Oven weight (KG) |
330 |
|||
Blow molding part
|
Die force (KN) |
120 |
||
Die stroke (mm) |
320 |
|||
Max. mould size(mm) |
390*350 |
|||
Mould thickness |
Adjustable |
|||
Mould spacing(mm) |
Adjustable |
|||
Max. pulling stroke(mm) |
500 |
|||
Operation pressure(Mpa) |
0.8-1.0 |
|||
Operation air pressure consumption(1tr/min) |
350 |
|||
Blow pressure(Mpa) |
1.2-2.8 |
|||
Blow air pressure consumption (1tr/min) |
300 |
|||
Machine size(LxWxH)(m) |
1.56*0.7*1.9 |
|||
Machine weight(KG) |
700 |
|||
Four core advantages to help efficient production
High efficiency and stability, excellent production capacity
Energy saving and environmental protection, reducing operation
Stable and durable, low failure rate
Full-process service
Features
01.
Intelligent servo drive system
02.
Highly efficient and energy-saving heating solutions
03.
Intelligent process control systems
04.
Reliable mechanical structure
Frequently Asked Questions
Answer: It depends on the model (single or multi-cavity). Standard machines produce 1,000–5,000 bottles/hour, while high-speed models can reach 10,000+ bottles/hour. We customize solutions based on yo...
Answer: Yes! Our machines support virgin PET and rPET (up to 30–50% recycled content, depending on bottle quality requirements). We optimize heating and blowing for stable performance.
Answer: With our quick mold-change system, switching takes 15–30 minutes (vs. 1–2 hours for traditional machines), minimizing downtime.
Answer: Advanced servo-driven machines save 20–30% energy vs. hydraulic models. For example, a 20-cavity machine consumes ~25–35 kW/h.
Answer: Our machines feature:Precision temperature control (±1°C)Automatic wall thickness adjustmentReal-time defect detection (rejects faulty bottles)
Answer: Regular maintenance includes:Daily: Lubrication, air pressure checksMonthly: Mold cleaning, heater inspectionYearly: Servo motor and hydraulic system overhaul
Answer: Yes! We offer turnkey solutions, including:Preform injection machinesBlow moldersConveyors, labelers, fillersQuality inspection systems
Answer: We provide:1–2 years warranty (core parts)24/7 remote supportOn-site technician dispatch (if needed)
Ordering Process for Our Blow Molding Machines：
| Step | Stage | Description | Key Activities & Deliverables |
|---|---|---|---|
| 1 | Initial Inquiry & Consultation | You contact us to express your needs. | • Submit your requirements (bottle design, output capacity, material). • Our technical team provides initial consultation and machine recommendations. |
| 2 | Technical & Commercial Proposal | We provide a detailed offer based on your needs. | • Receive a formal quotation including machine specifications, price, and delivery terms. • Layout drawing and performance data provided for review. |
| 3 | Proposal Review & Negotiation | We discuss and refine the offer to meet your expectations. | • Clarify technical details and commercial terms (payment, warranty, training). • Adjust the proposal as needed. |
| 4 | Order Confirmation & Contract Signing | The agreement is formalized. | • Sign a sales contract or acknowledge a Proforma Invoice (PI). • Provide an official purchase order (PO) from your company. |
| 5 | Payment (Advance) | You make the initial payment to secure production. | • Pay the first installment (e.g., 30%-50% of the total amount) as per the contract. |
| 6 | Machine Production & Testing | We manufacture and rigorously test your machine. | • We build the machine to your specifications. • A factory acceptance test (FAT) is conducted. You are welcome to witness it. |
| 7 | Final Payment & Shipping Preparation | You clear the balance payment before shipment. | • Settle the remaining balance upon successful FAT and before dispatch. • We prepare all shipping and customs documentation. |
| 8 | Packaging & Shipment | Your machine is securely packed and shipped. | • The machine is crated for safe international or domestic transport. • We arrange shipment and provide tracking details. |
| 9 | Installation & Commissioning | Our engineers assist with setup at your factory. | • Our technicians arrive at your site (if included in the contract). • The machine is installed, calibrated, and tested with your materials. |
| 10 | Training & Final Acceptance | Your operators are trained on the machine. | • Comprehensive hands-on training is provided. • Perform Site Acceptance Test (SAT) and sign the final acceptance certificate. |
| 11 | After-Sales Support | Our ongoing support begins. | • Warranty period activation. • Lifetime technical support and supply of spare parts. |
